XTS Series
Home > Product Lines > Tube Heaters > Tube Heater Parts > XTS Series
XTS Series Parts References
Exploded Burner Box View
Exploded Tube And Reflector View

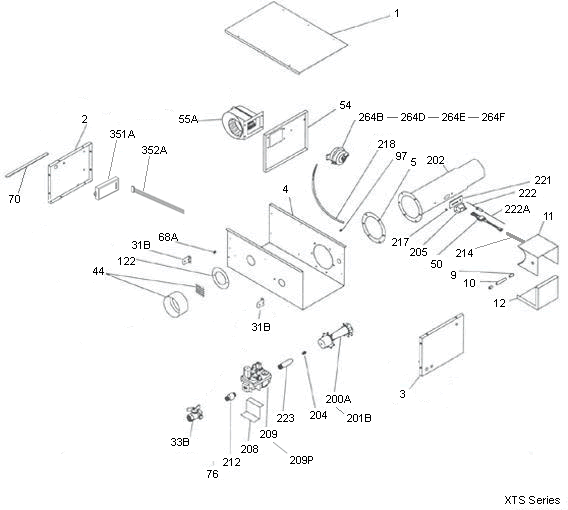

XTS Series Exploded Burner Box View
Gas Valve (Select Type Below) DRP Burner - (Select Type Below) TP-264 - Pressure Switch (Select Type Above) TP-70 - Control Box Cover Gasket
Items
TP-55A - Detroit Radiant Products
Fasco Fan Blower
$155.70
TP-264B - Detroit Radiant Products
Burner Pressure Switch
50-100 MBH Only
$49.50
TP-264E - Detroit Radiant Products
Burner Pressure Switch
125-150 MBH Only
$49.50
TP-264D - Detroit Radiant Products
Burner Pressure Switch
175 MBH Only
$49.50
TP-264F - Detroit Radiant Products
Burner Pressure Switch
200 MBH Only
$49.50
TP-351A - Detroit Radiant Products
Mark17DU-117 Circuit Board, AKA Fenwal 35-755900-009
TP-390 Also Required If Manufactured Before 11/06/2000
$163.80
TP-390 - Detroit Radiant Products
Channel Products Circuit Board Adapter
$19.80
TP-825 - Detroit Radiant Products
24V Isolation Relay Board
Factory Option - Not Included On All Units
$86.40
TP-50 - Detroit Radiant Products
Glo-Bar Ignitor
$40.50
TP-200A - Detroit Radiant Products
Low BTU DRP Burner
50-100 MBH Only
$59.40
TP-201B - Detroit Radiant Products
High BTU DRP Burner
125-200 MBH Only
$72.00
TP-209 - Detroit Radiant Products
36E36A-246 Natural Gas Assembly

TP-209P - Detroit Radiant Products
36E36A-240 LP Gas Assembly

TP-222 - Detroit Radiant Products
Flame Rod
$20.70
TP-202 - Detroit Radiant Products
16'' Burner Tube With Flange

Related Documents
Re-Verber-Ray XTS Series Product Manual
Re-Verber-Ray General Tube Heater Manual
