HL2 Series
Home > Product Lines > Tube Heaters > Tube Heater Parts > HL2 Series
HL-2 Series Parts References
Exploded Burner Box View
Exploded Tube And Reflector View

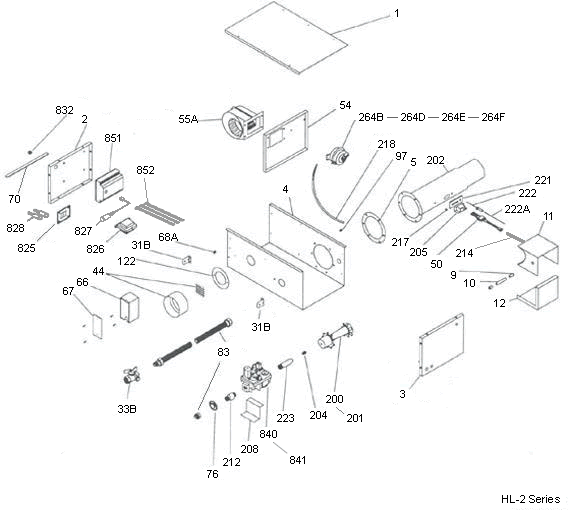

HL-2 Series Exploded Burner Box View
Gas Valve - (Select Type) DRP Burner - (Select Type) Pressure Switch - (Select Type)
Items
TP-55A - Detroit Radiant Products
Fasco Fan Blower
$155.70
TP-264B - Detroit Radiant Products
Burner Pressure Switch
40-100 MBH Only
$49.50
TP-264D - Detroit Radiant Products
Burner Pressure Switch
125-150 MBH Only - Units Manufactured Before 08/05/2002
$49.50
TP-264E - Detroit Radiant Products
Burner Pressure Switch
125-150 MBH Only - Units Manufactured After 08/05/2002
$49.50
TP-264D - Detroit Radiant Products
Burner Pressure Switch
175 MBH Only
$49.50
TP-264F - Detroit Radiant Products
Burner Pressure Switch
200 MBH Only
$49.50
TP-851 - Detroit Radiant Products
Micro-60-24 Diagnostic Circuit Board
$192.60
TP-852 - Detroit Radiant Products
HL-2 Wire Harness Set
$28.80
TP-825 - Detroit Radiant Products
24V Isolation Relay Board
Factory Option - Not Included On All Units
$86.40
TP-50 - Detroit Radiant Products
Glo-Bar Ignitor
$40.50
TP-200A - Detroit Radiant Products
Low BTU DRP Burner
50-100 MBH Only
$59.40
TP-201B - Detroit Radiant Products
High BTU DRP Burner
125-200 MBH Only
$72.00
TP-840 - Detroit Radiant Products
36E96-224 Natural 2 Stage Gas Assembly
$178.20
TP-841 - Detroit Radiant Products
36E96-226 LP 2 Stage Gas Assembly
$178.20
TP-826 - Detroit Radiant Products
40VA Transformer
$28.80
TP-828 - Detroit Radiant Products
Yellow 24V Indicator Light
$8.10
TP-222 - Detroit Radiant Products
Flame Rod
$20.70
TP-202 - Detroit Radiant Products
16'' Burner Tube With Flange

TP-980 - Detroit Radiant Products
16'' Primed 4'' Flanged Tube - Stainless Steel
Stainless Steel Units Only
$85.50
Related Documents
Re-Verber-Ray HL-2 Product Manual
Re-Verber-Ray General Tube Heater Manual
