DX2 Series
Home > Product Lines > Tube Heaters > Tube Heater Parts > DX2 Series
DX-2 Series Parts References
Exploded Burner Box View
Exploded Tube And Reflector View

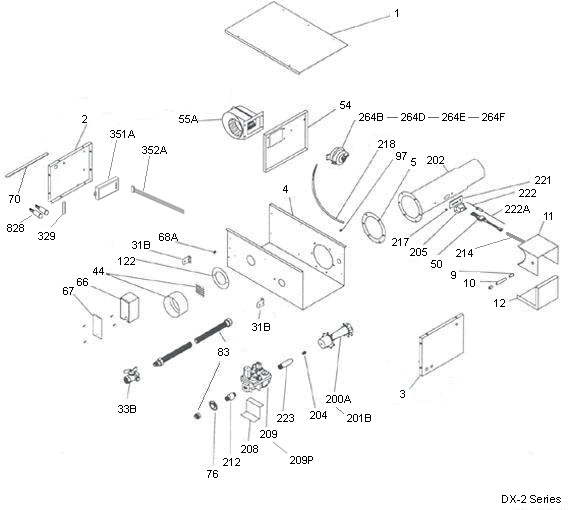

DX-2 Series Exploded Burner Box View
Gas Valve (Select Type Below) DRP Burner - (Select Type Below) TP-264 - Pressure Switch (Select Type Above) TP-70 - Control Box Cover Gasket
Items
TP-55A - Detroit Radiant Products
Fasco Fan Blower
TP-264B - Detroit Radiant Products
Burner Pressure Switch
50-100 MBH Only
TP-264E - Detroit Radiant Products
Burner Pressure Switch
125-150 MBH Only
TP-264D - Detroit Radiant Products
Burner Pressure Switch
175 MBH Only
TP-264F - Detroit Radiant Products
Burner Pressure Switch
200 MBH Only
TP-351A - Detroit Radiant Products
Mark17DU-117 Circuit Board, AKA Fenwal 35-755900-009
TP-390 Also Required If Manufactured Before 09/18/2000
TP-390 - Detroit Radiant Products
Channel Products Circuit Board Adapter
TP-50 - Detroit Radiant Products
Glo-Bar Ignitor
TP-200A - Detroit Radiant Products
Low BTU DRP Burner
50-100 MBH Only
TP-201B - Detroit Radiant Products
High BTU DRP Burner
125-200 MBH Only
TP-209 - Detroit Radiant Products
36E36A-246 Natural Gas Assembly

TP-209P - Detroit Radiant Products
36E36A-240 LP Gas Assembly

TP-328 - Detroit Radiant Products
120V Indicator Lights
TP-222 - Detroit Radiant Products
Flame Rod
TP-202 - Detroit Radiant Products
16'' Burner Tube With Flange

TP-980 - Detroit Radiant Products
16'' Primed 4'' Flanged Tube - Stainless Steel
Stainless Steel Units Only
Related Documents
Re-Verber-Ray DX-2 Series Product Manual
Re-Verber-Ray General Tube Heater Manual
